TPR Encore Round-Top Horizontal Bend LED Neon
Product Description:

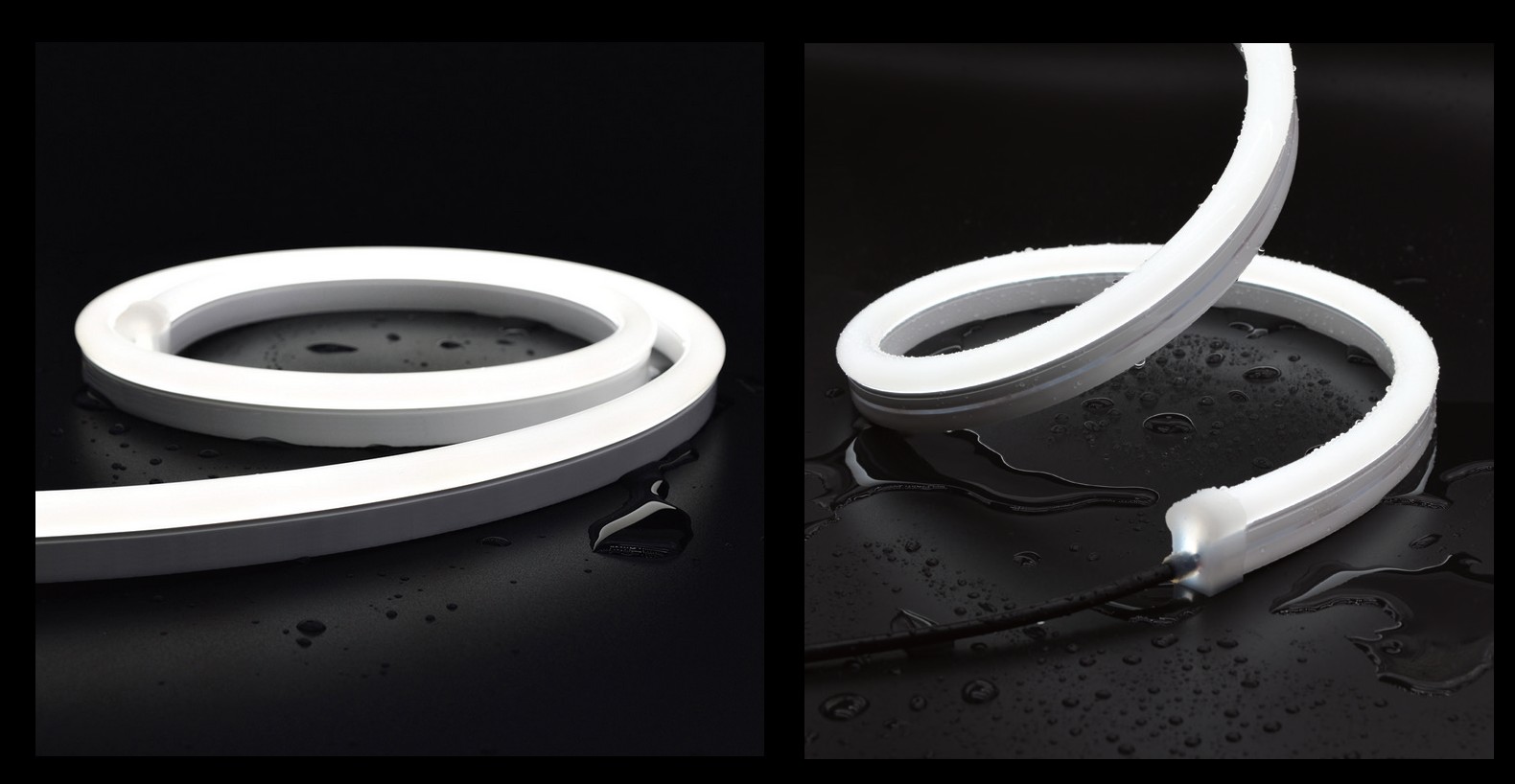

The TPR Encore LED Neon is a flexible Neon replacement product for use in Architectural and Entertainment venues. It is avaliable in several color temperatures of white, solid colors, RGB, and RGBW. It is IP67 rated, has UV protection, and allows for a tight bend radius. Great for outlining buildings and creating curved lines of light.
Specifications:
Construction: PVC
Power: 5W/ft (Single Color), 4W/FT (RGB), 5.2W/FT (RGBW)
Operating Voltage: 24VDC
Operating Temp: -4F to 104F (-20C to 40C)
Dimensions: 1.14” (H) x 0.45”(W)
Min Bend Radius: 4.75”
Lamp Life: 50,000hr (70% Lumen Maintenance)
Max Run Length: 32.8’ Single Fed (RGB only)
Max Run Length: 26’ Single Fed (Single Color & RGBW only)
Molded (IP67) Connectors
MODEL
TPR–FL–ENCORE - S - R -
COLOR or
W (Choose CT)
R (Red)
G (Green)
B (Blue)
A (Amber)
P (Pink)
RGB
RGBW
COLOR TEMP
2200K
2500K
3000K
3500K
4000K
5000K
5700K
6500K
FEED TYPE
EF (end feed)
BF (bottom feed)
SF-L/R (side feed left or right)
