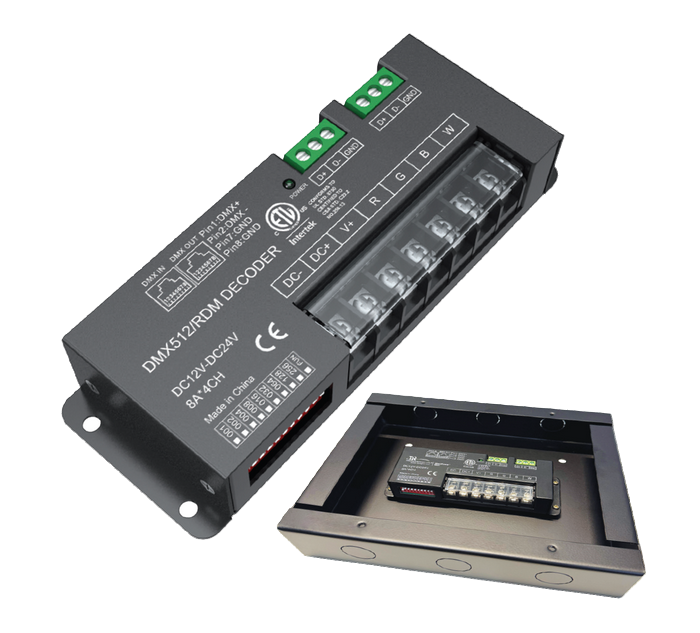

TPR WestPower® Mini DC Dimmer DMX512/RDM 4 Channel
Features:
- 4 Channel DMX LED Dimmer Pack
- 8 Amps/Channel (25 Amps maximum/pack)
- ETL Listed US/Canada
- 1 Year Warranty
- DMX Indicator
- Operated at 12VDC–24VDC
- No ventilation required
- DMX Input/Output RJ45 or Terminal
- Short Circuit Protection
- Overtemperature Cut Off
- Overload Protection
Specifications:
MODEL
WESTPOWER® MINI
POWER*/CONTROL
*From TPR DC Power Supply
RATED POWER
300w/12v or 600w/24v
VOLTAGE RANGE
12-24VDC (See PS literature)
RATED CURRENT
8A/Channel 25A maximum/Pack
EXTERNAL DMX INPUT
RJ45 or Terminal
WIRING INPUT/OUTPUT
Screw Terminal
MOUNTING
(4) #6 Keyholes on back of unit
Left/Right of chassis
Left/Right of chassis
DIMENSIONS (LxWxD)
5.5” x 2.0” x 1.0” (140 x 50 x 26mm)
WEIGHT
8.5 oz
MATERIAL/FINISH
Steel/Powder Coat Black
RATING & STANDARDS
ETL US/C
Designed for indoor usage
Designed for indoor usage
OPERATING TEMP RANGE
-20°~122°F or -28°~50°C
w/5-95% non-condensing humidity
w/5-95% non-condensing humidity
Certifications:
Ordering Logic:
DEVICE
WP-West
d
–
MODEL
Mini
d
–
ACCESSORIES
RJ45-FM3PXLR (RJ45 to XLR Adapter)
RJ45-M3PXLR (RJ45 to XLR Adapter)
